125 x 6 x 31.75 - 3A1 (D107) Resin Bonded Diamond (DW645)

Manufactured by Wessex International (DEVON)

JASCO

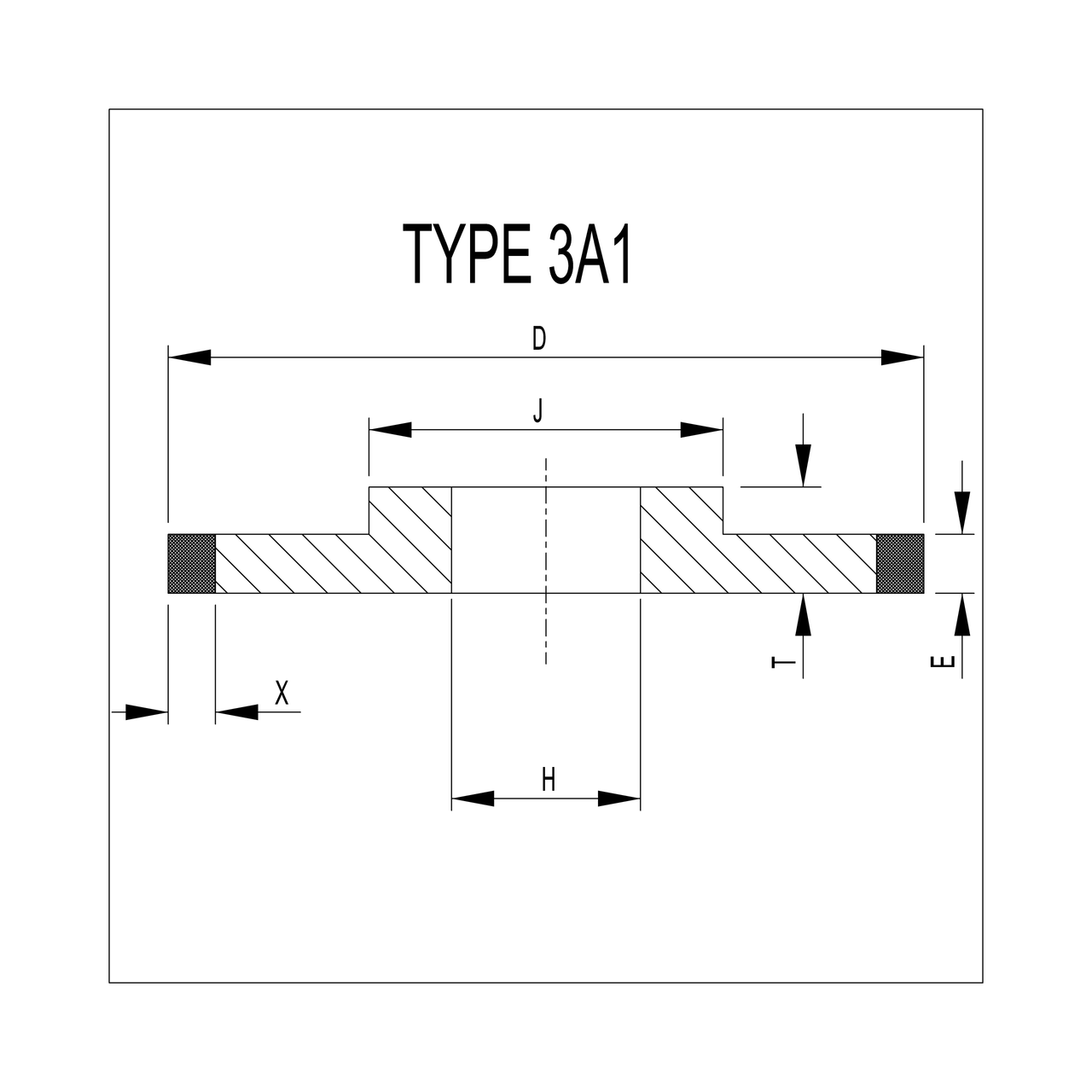

D=125, X=3, E=6, T=10, H=31.75, J=80

• Straight Diamond Wheel - Type 3A1
• 125 x 6 x 31.75mm.
• D107 C50 (grit size, concentration).
• High quality synthetic diamond.
• Suitable for VOLLMER-DORNHAN & WIDMA
• For grinding tungsten carbide - high material removal rates.
• Longer wheel life vs. conventional green silicon carbide wheels.
• Superior form holding; efficient wet or dry.
• Premium, heavy-duty resin bond.
• Aluminium Body

DIAMOND
One of the crystalline forms of carbon. It is historically known as a gemstone, however,
it is the physically hardest substance known and is now widely used as an abrasive in high
productivity tools in industry. Diamond also has other remarkable physical properties.

Diamond or CBN?

GRIT SIZE GUIDE (Examples) Range D46 - D851

COARSE D851......COARSE/MEDIUM D251......MEDIUM D126......MEDIUM/FINE D91......FINE D46
